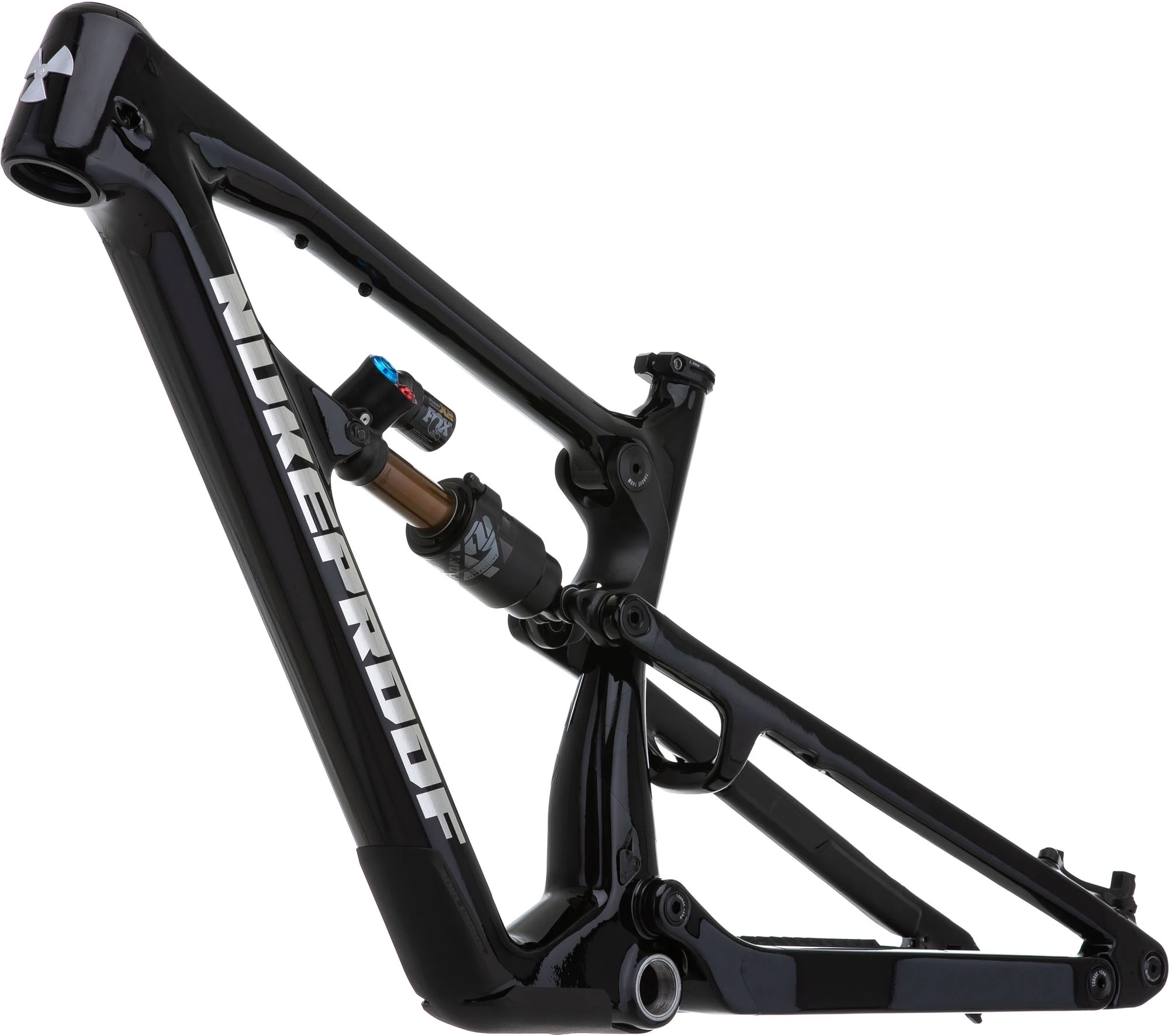

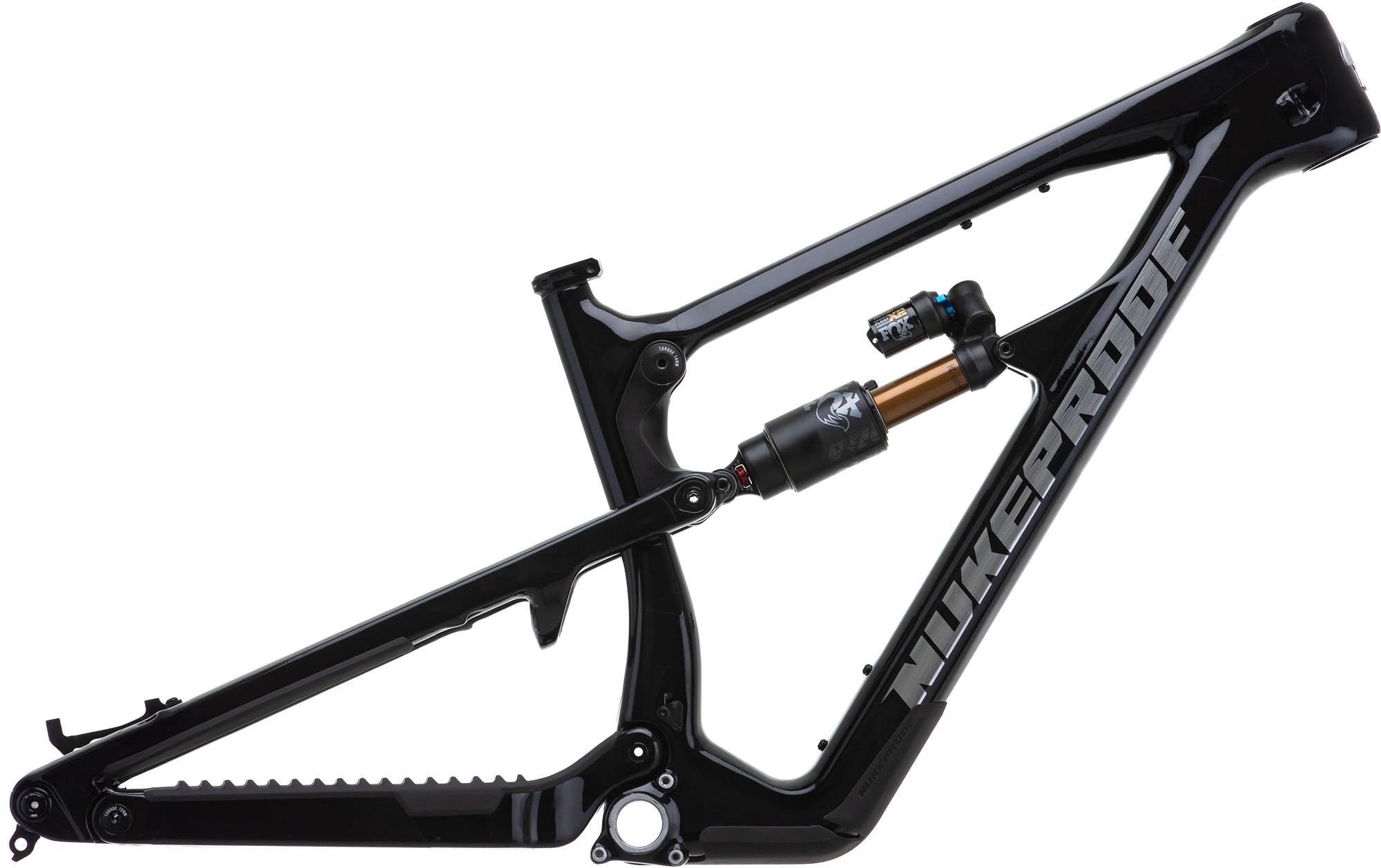

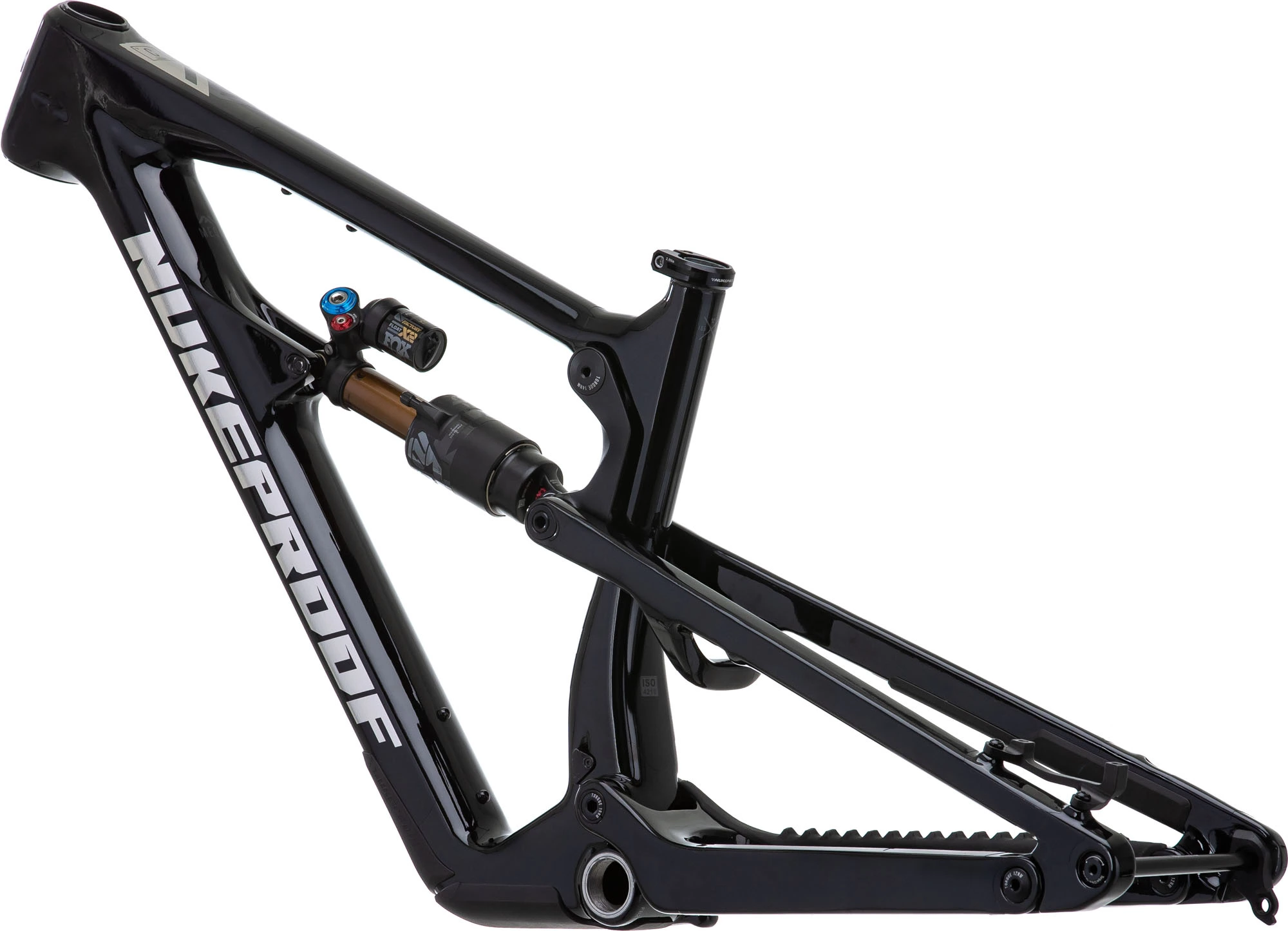

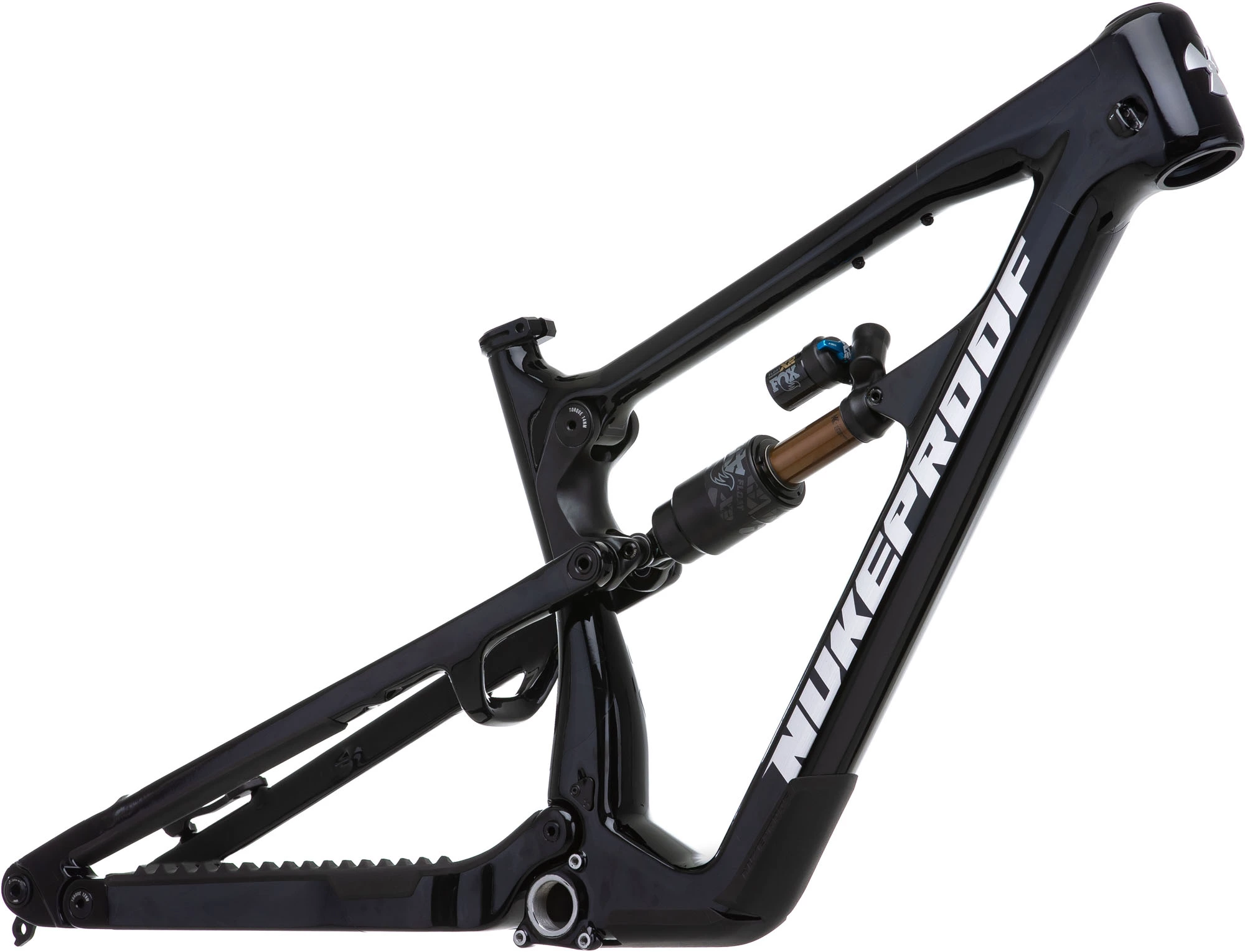

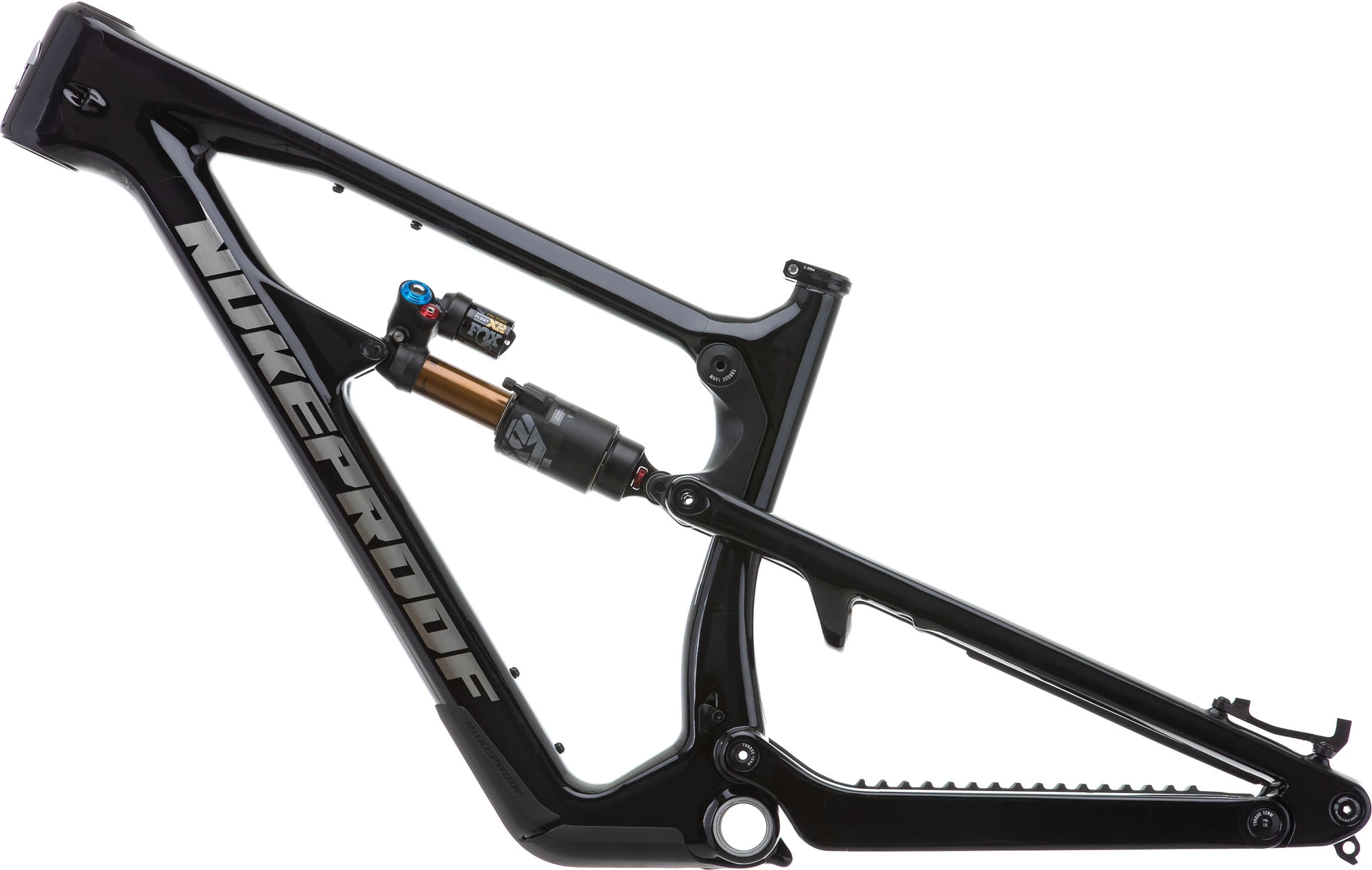

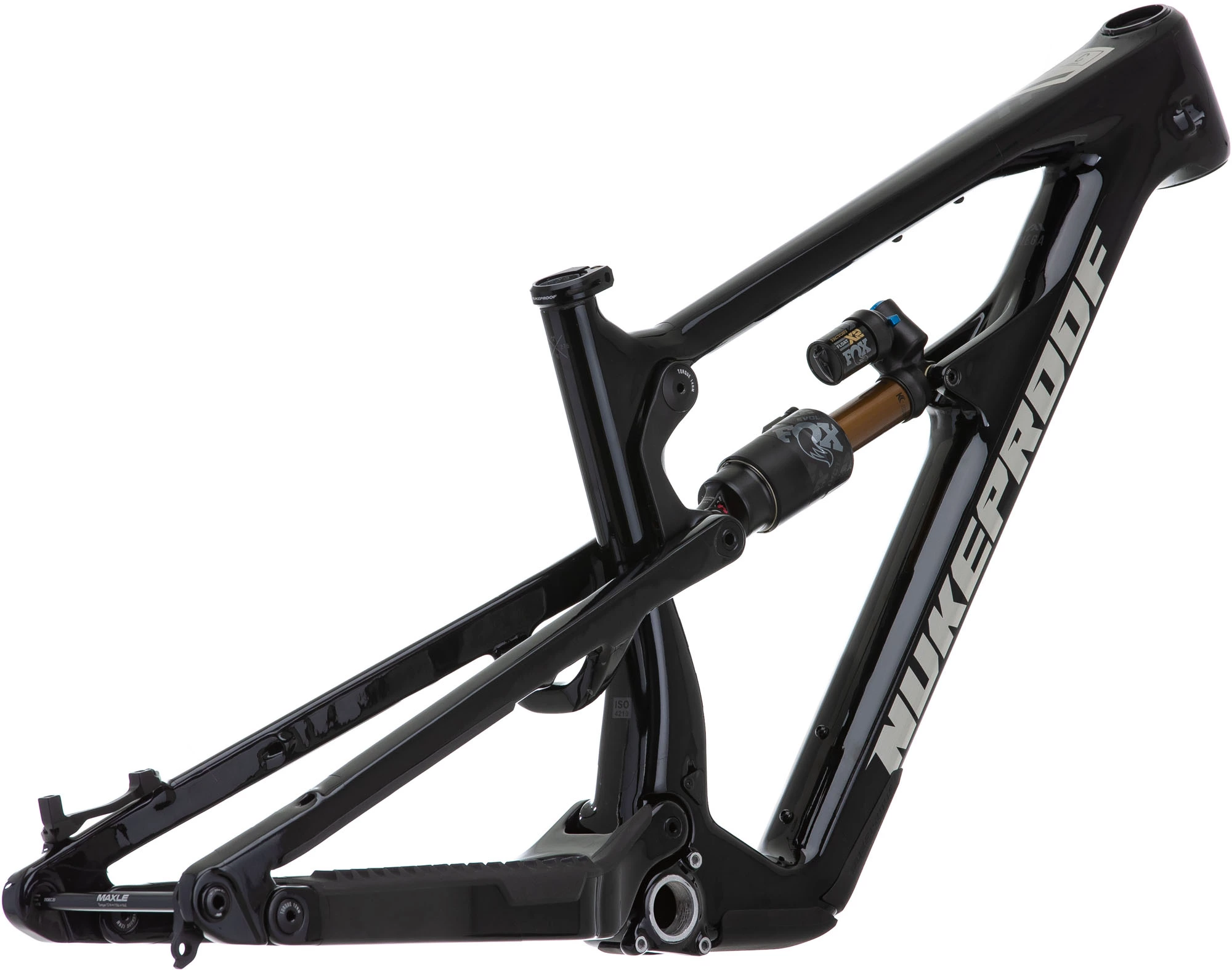

Nukeproof – Mega 275 Carbon Frame – Black

◌

This race-ready full-suspension mountain bike (MTB) frame features an ultra-strong T700/800 monocoque carbon fibre build, which allows you to benefit from its increased stiffness and strength without any weight penalty. Lightweight and responsive, Nukeproof has also kitted out this model with updated geometry for smooth handling, while its internally piped cable routing allows for a sleek, clean finish. Developed for the most demanding of terrain conditions, this version also comes equipped with a Factory Series Fox Float X2 rear shock for increased traction, tuneability and smoothness. Coming complete with 148x12mm Boost rear hub spacing and a range of updated features, this carbon frame is a perfect choice of upgrade for completing your enduro bike build.

For over 12 years, Nukeproof’s best-selling model; the Mega has been racking up awards on Enduro stages and in the press around the world. With four Enduro World Series titles to its name, the Mega has become an icon that is synonymous with racing.

Since 2009 the Nukeproof Mega has been on a constant development to meet the demands of Nukeproof’s riders and customers alike. As a result, the Mega Carbon V4 frame is available for 27.5”, 29” or new Mixed (Front 29”/Rear 27.5” wheel sizes) wheel set ups, with each frame design tailored around each wheel size.

Carbon Fibre Full-Suspension Enduro MTB Frame

To optimise the weight, strength and stiffness, the Mega Carbon frame features a T700/800 UD woven carbon fibre frameset (Front and rear Triangle). The carbon swingarms helps reduce the unsprung weight on the rear of the bike, improving suspension performance. All forged parts are made from 6061-T6 aluminium.

After winning four Enduro World Series Titles in three years the V4 design is an evolution of Nukeproof’s ultimate Enduro bike. At the heart of the frame is the brand’s revised suspension Kinematic, designed to be more subtle off the top, whilst remaining progressive and predictable. Anti-Squat is used to create an effective pedalling bike that can be thrashed through technical terrain. The useable SAG range is also widened to allow riders to tune the suspension to the trails. Other key features include:

·        All new UD Carbon chassis

·        Improved suspension kinematics

·        Tube-In-Tube design for easy cable installation

·        All new geometry

·        Optimised sizing/fit – Small to XXL

·        SRAM UDH

·        Room for a 750ml water bottle inside the main front triangle



The updated Mega frame geometry features dynamic saddle offset which is designed to optimise seated rider weight distribution on each frame size. This is achieved through seat angles which are bespoke to each frame size. In addition, the actual seat tube is designed to be shorter overall with a bigger maximum insert depth so as to allow a longer dropper post if required.



Features:

Material: Ultra Strong T700/800 Monocoque Carbon Fibre
Fork Travel: 170mm
Axle to Crown: 562mm
Fork Offset: 37mm
Rear Travel: 165mm
Wheels Size: 27.5″
Max Tyre Size: 2.6″
Recommended Shock Sag (Measured seated): 30%
Shock Size: 230×62.5mm
Shock Hardware F: 25x8mm
Shock Hardware R: 30x8mm
Sizing Options: S/M/L/XL/XXL
Headtube: 44-56mm Tapered Semi-Integrated
Headset: ZS44-28.6 – T2 / ZS56/40 – B8
Bearings Required: 4x F6802 LLU MAX, 4x 6902 LLU MAX, 2x F6902 LLU MAX-EA
Seatpost: 31.6mm (Internal Routing for Dropper Seatpost)
Seat Clamp: 36.4mm
Bottom Bracket: Threaded 73mm BSA
Rear Hub: Boost 148x12mm
Rear Axle: SRAM UDH Maxle Stealth M12x1.0 180mm (Thread Length 13mm)
Chain Guide: ISCG05
Brake Mount: 180mm Direct Post
Protection: 3D Contoured Rubber Frame Protection for DT/SS/CS

Specification:

Frame: Nukeproof Mega V4 275 Carbon, 165mm Travel, ultra-strong monocoque UD Carbon Fibre frame
Internally piped cable routing
ISCG05 mount
Enduro bearings
Threaded 73mm BB
Boost 148mm rear axle spacing
3D contoured Rubber frame protection
Factory fitted clear paint protection kit covering TT/DT/CS/SS.
Shock: Fox Float X2, Factory Series, Kashima, EVOL, 2 Position lever, Custom CL, RM, Rezi CM tune, 230x65mm, Bearing End, 2x 0.3 spacer fitted. (SHORT ID: D7JJ)
Headset: Nukeproof, 44-56 IITS
Weight: 3.88Kgs/8.55lbs (Tubeless)
